Descriptions of Fashion
(Public Transport Bus, Passenger Bus, Group Bus, Commuter Bus)

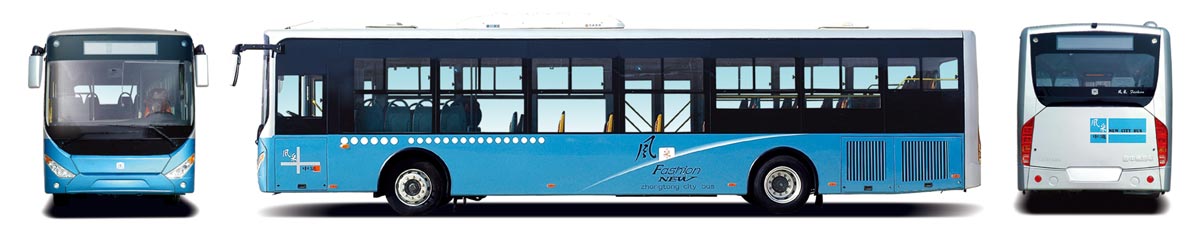

1. Zhongtong bus, fashion series has simple and fashionable design. Its concise lines show fashion in everywhere.

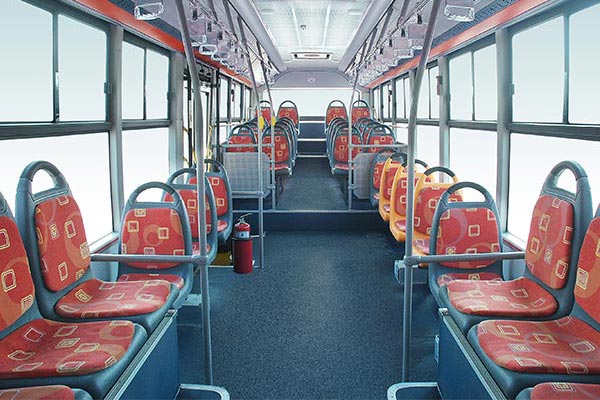

2. Large windows and reasonable space design makes our bus look bright and spacious.
3. The widened passenger door can enable passengers to quickly enter the bus.
4. The widened passenger passway can make passengers feel easy to pass through.
5. The four covering design of front wall is adopted for easy maintenance.
|Total Ref.||Length*Width*Height (mm)||10500*2500*3170||12590*2500*3260|
|Max. Weight (kg)||15000||22000|
|Rated Seating Capacity (number of person)||49+1||47+1+2 (wheel chair)|
|Max. Speed (km/h)||110||110|
|Diesel Engine Ref.||Model.||ISBe 4+ 225B with OBD||ISDE270 41, OBD|
|Max. Power Capacity (KW)||162||270|
|Chassis Ref.||Standard configuration||Standard configuration|
|Gear Box||S6-100 6 speeds manual gear box||VOITH automatic transmission with inner retarded|
|Front and Rear Axle||5.5T, 11T||7.5 T, 13T|
|Suspension||Air suspension||Air suspension 2/4/2 air bags, local SACHS absorber, ECAS|
|Brake||Dual circuit air-operated brake/front and rear disc brake, exhaust brake||Dual circuit air braking (use hose with DOT or ECE certification), WABCO ABS+EBS|
|Tire||11.00R 22.5, 6 tires with ECE mark, and 1 spare tire||275/70R22.5 with E mark|
|Length*width *height (mm)||13690*2540*3260/3170||17990*2500*3460|
|manufacturer||Xichai / Weichai||Shangchai / Weichai/ Yuchai|
|Max power (kw)||224/213||184/191/191|
|gear box||Allison T350R||ZD.F5S1280G|
|suspension frame||Air suspension/Leaf spring suspension||Air suspension/Leaf spring suspension|
|Brake system||Dual circuit brake, drum brake||Dual circuit brake, drum brake|
Thank you for visiting our website. We are a leading Fashion buses manufacturer and supplier based in China.
Fashion series buses are new products our company developed in 2010. Their simple and fashionable design shows fashion in everywhere.
Our Fashion series buses include public transport buses, group buses, commuter buses and more. They are available in various styles. Due to the reliable performance and affordable prices, they are sold well in the United States, New Zealand, Spain, Argentina, Russia and more.
For further inquiries, please contact us via email or contact addresses available on this website. We are looking to cooperating with you.
